PRODUCT INFO

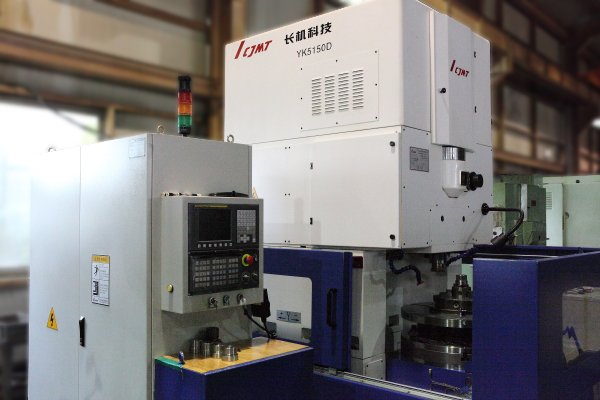

제품명 CNC GEAR SHAPER
모델 YK5150DX3
EA 1

상세내용









Video



Specification
  Max. diameter of external/internal gear   500 / 600 mm
  Max. module   10mm
  Max. face width   180mm
  Max. stroke length   200mm
  Stroke of main spindle   40~400 str / min
  Adjusting amount of stroke of cutter   50mm
  Rotary feed(d cutter:125)   0.02~0.9 mm / str
  Radial feed   0~1000 mm / min
  Cutter relieving   ≥0.5 mm
  Diameter of cutter neck   31.743 mm
  Diameter of worktable   700 mm
  Diameter of worktable bore   140 mm
  Distance between axis of
  cutter spindle and worktable
  0~400 mm
  Mounting face and worktable surface   250~500 mm
  Total power   20 kW
  Overall dimension(L×W×H)   2,360 × 2,000 × 2,600 mm
  Weight   13,000 kg
