PRODUCT INFO

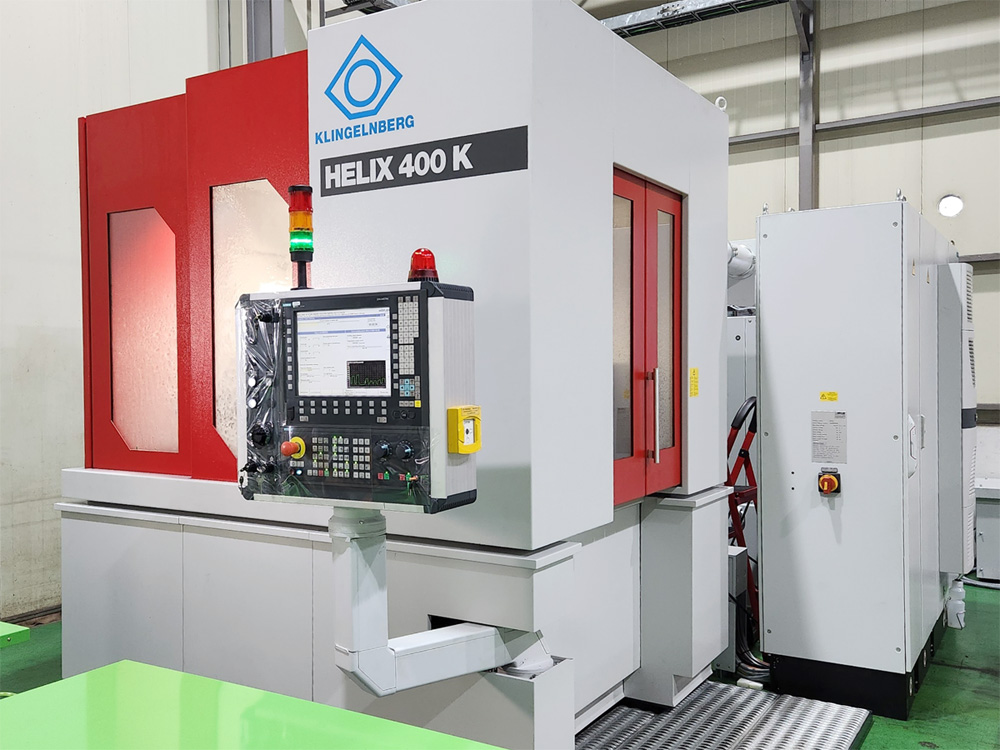

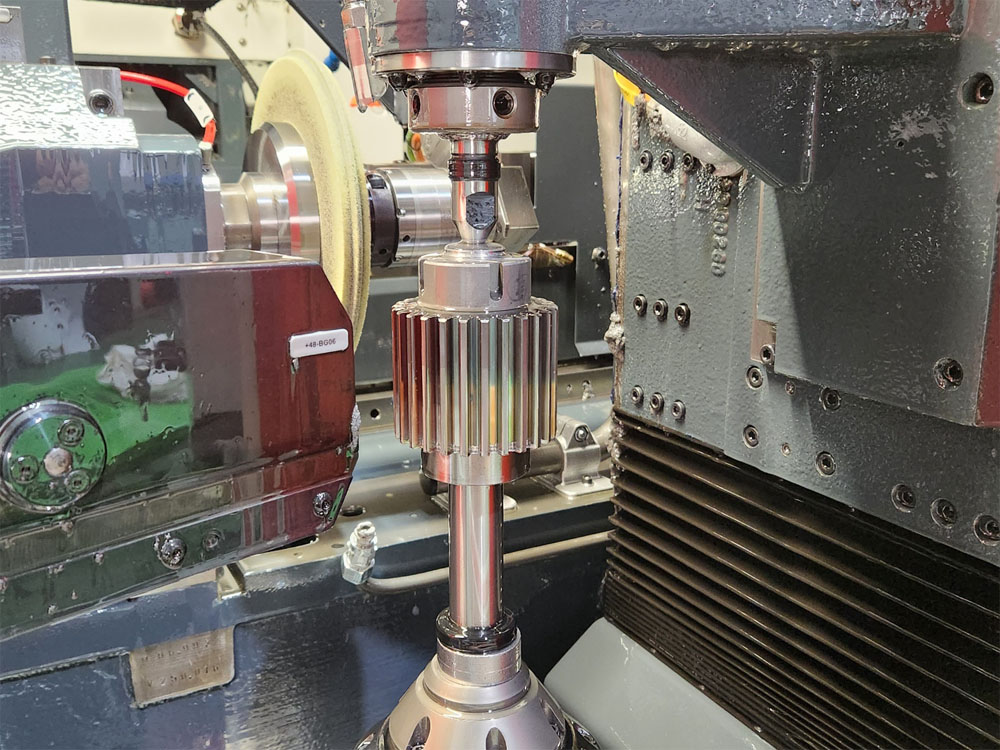

제품명 CNC GEAR GRINDING MACHINE
모델 HELIX400K
EA 1

상세내용









Machine Specification : KLINGELNBERG HELIX 400K

  Range of Application   HELIX 400 K
  (Cylindrical) gear outer diameter (max.)   Ø 400 mm
  (Cylindrical) gear root circle diameter (min.)   Ø 10 mm
  Axial stroke length   260 mm
  Center distance above table (min. – max.)   325 – 745 mm
  Profile height (max.)   35 mm
  Module (min. – max.)   0.5 – ca. 15*
  Pressure angle   without restriction
  Swivel angle   +/– 45°
  Grinding wheel diameter (max.)   Ø 300 mm
  Grinding wheel diameter shoulder (min.)   Ø 80 mm
  Grinding wheel width (max.)   40 mm
  Grinding spindle drive (max.)   15 kW
  Stroke speed of tool slide (max.)   6 m/min (12 m/min)**
  Table diameter   Ø 180 mm
  Table load (max.)   100 kg
  Table hole (diameter x depth)   Ø 75 x 40 mm
  Table rotation speed (max.)   85 rpm
  Dressing roll (diameter x width)   Ø 160 x 13 mm
  Machine dimensions (L x W x H)   4,600 x 5,100 x 2,700 mm
  Net weight approx.   10,000 kg
