PRODUCT INFO

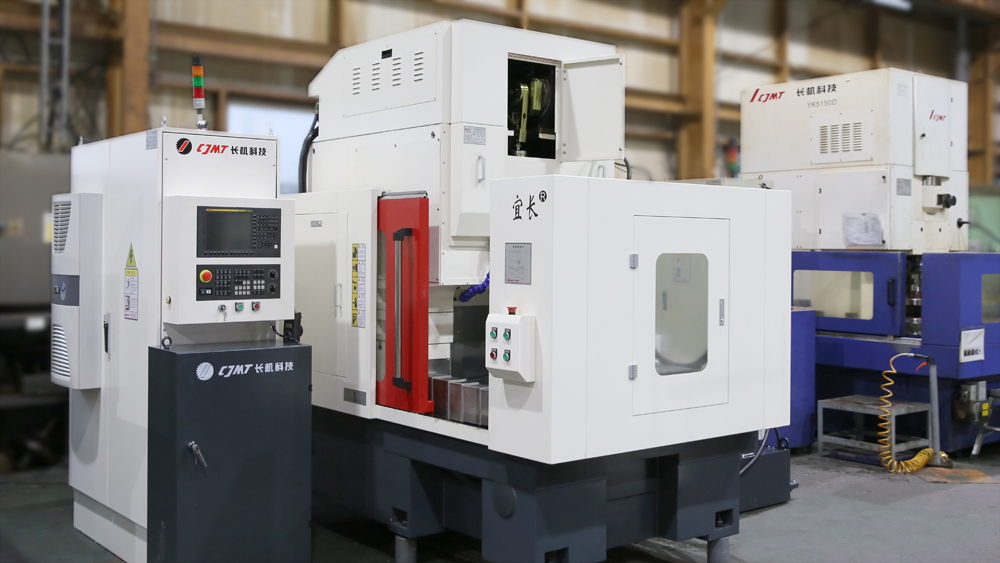

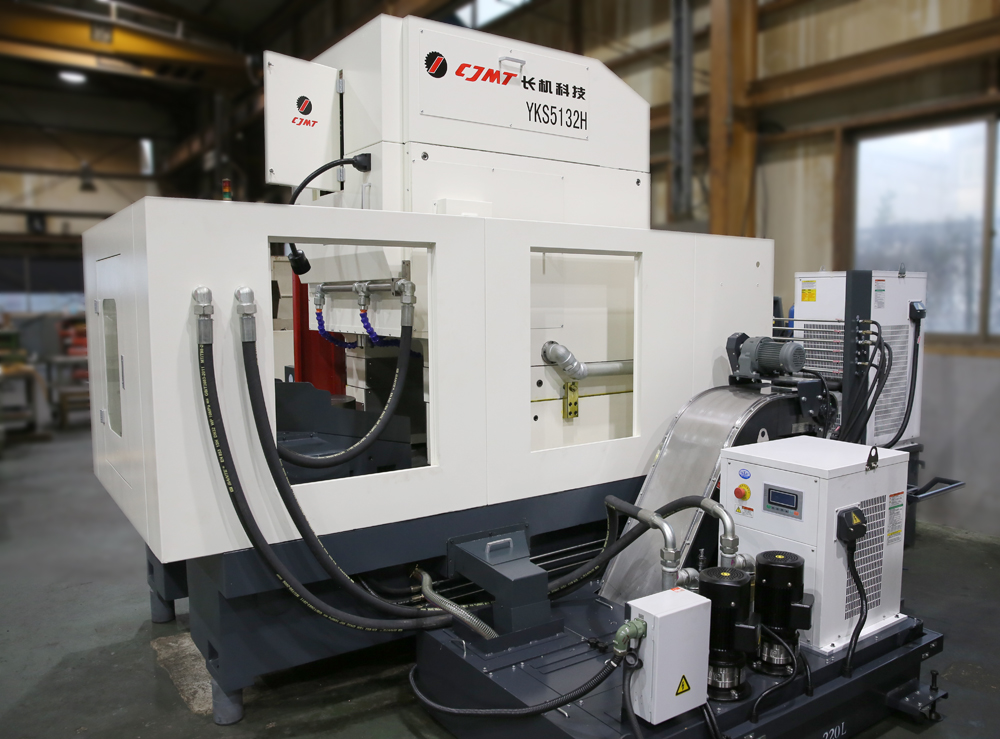

제품명 CNC GEAR SHAPING MACHINE
모델 YKS5132H
EA 1

상세내용













SPECIFICATION


Model

YKS5132H

Max. Diameter of External

320mm

Max. Diameter of Internal

220+Cutter Diameter mm

Max. Module

8

Max. Face Width

90 mm

Max. Stroke Length

100 mm

Stroke Speed

125~2000 str/min

Cutter Relieving

0.3 mm

Adjusting Amount of Stroke Position

30 mm

Diameter of Cutter Neck

31.743 mm

Spindle Diameter

85 mm

Diameter of Worktable

420 mm

Diameter of Worktable Bore

120 mm

Distance between axis of cutter spindle and worktable

-110~300 mm

Distance between the nose of spindle and worktable surface

140~270 mm

Total power

16.8 kw

Total weight

9000 kg
