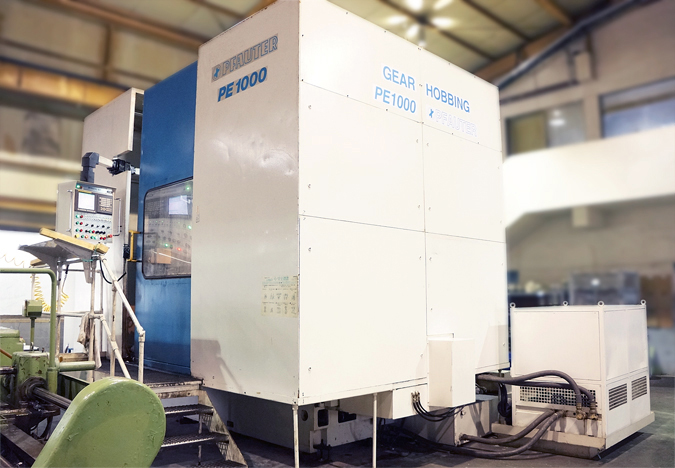

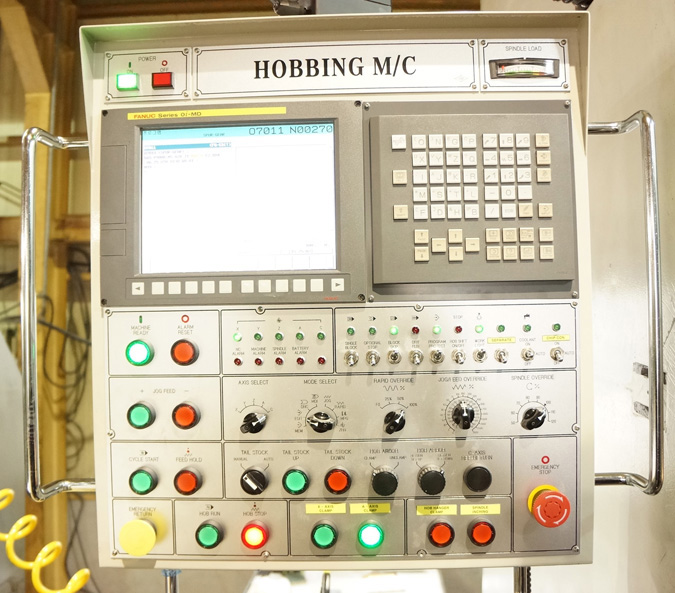

Specification
| WORKPIECE |
Maximum module
(steel C45 tensile strength 600 N/mm²) |
mm |
16 |
| Maximum diameter |
mm |
1,000 |
| Minimum number of teeth |
|
2 |
| TOOL |
Hob: |
|
|
| - Maximum diameter |
mm |
270 |
- Maximum length
(depending on hob arbor diameter) |
mm |
300 |
| MACHINE |
Hob arbor(s): |
|
|
| - Diameter |
mm |
32;40 |
| - Taper |
ISO steep taper |
50 |
| Slide travel: |
|
|
| - Radial (X-axis) |
mm |
575 |
| - Tangential (Y-axis) |
mm |
200 |
| - Axial(Z-axis) |
mm |
900 |
| Maximum swivel angle of hob head-FK-: |
|
|
| - Direction +A |
Degrees |
30 |
| - Direction -A |
Degrees |
45 |
| Work table -WT-: |
|
|
| - Outside diameter |
mm |
780 |
| - Bore diameter |
mm |
180 |
| - Maximum load |
kg |
3,150 |
| Tailstock arm -GH-: |
|
|
| - Travel |
mm |
780 |
| - Diameter of location hole |
mm |
380 |
| Space required for the machine: |
|
|
| - Length |
mm |
7,000 |
| - Weight |
mm |
4,955 |
| - Height |
mm |
3,820 |
| Approx. weight: |
kg |
13,500 |
| SPEEDS |
Feeds: |
|
|
| Axes X, Y, Z |
mm/min |
1 to 1,500 |
| |
mm/wr. |
0.001 to 40 |
| Rapid traverses: |
|
|
| - Axes X, Y, Z |
mm/min |
3,000 |
| Speeds: |
|
|
| - Tool speeds (B-axis) |
min-1 |
30 to 340 |
| - Maximum table speed range (C-axis) |
min-1 |
16 |
POWER
SUPPLY |
- Operating voltage |
V |
200 |
| - Control voltage |
V |
110 |
| - Frequency |
Hz |
60 |
| - Total connected load (approx). |
kVA |
70 |
|
