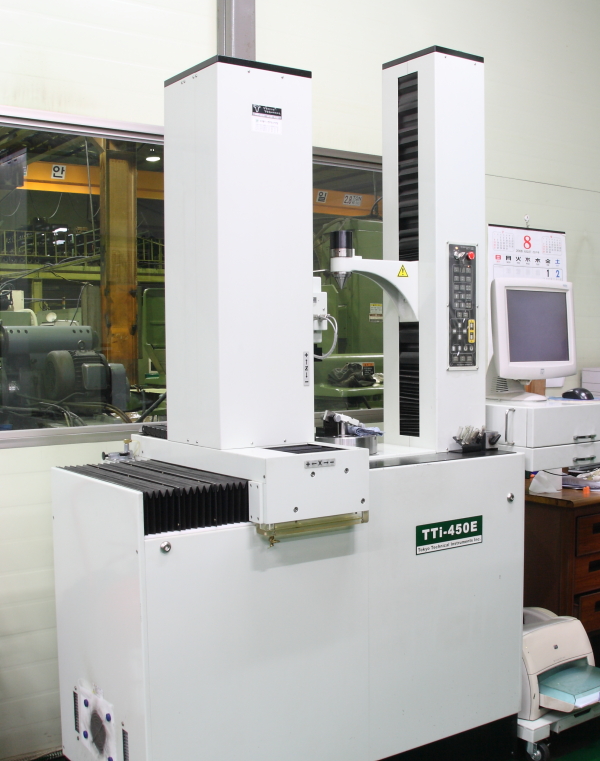

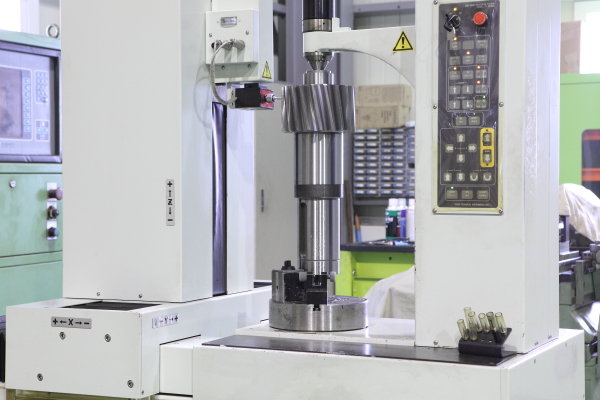

Video : TTi-450E Gear Test

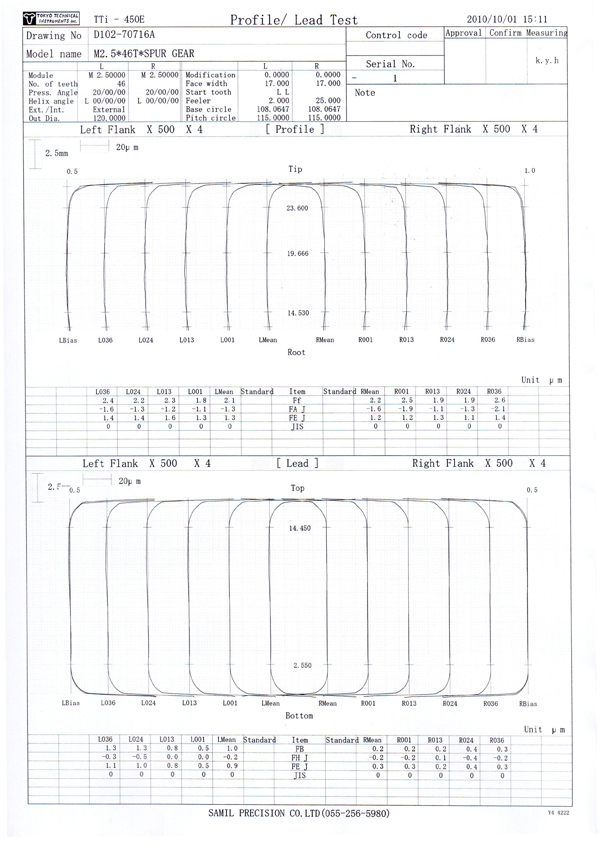

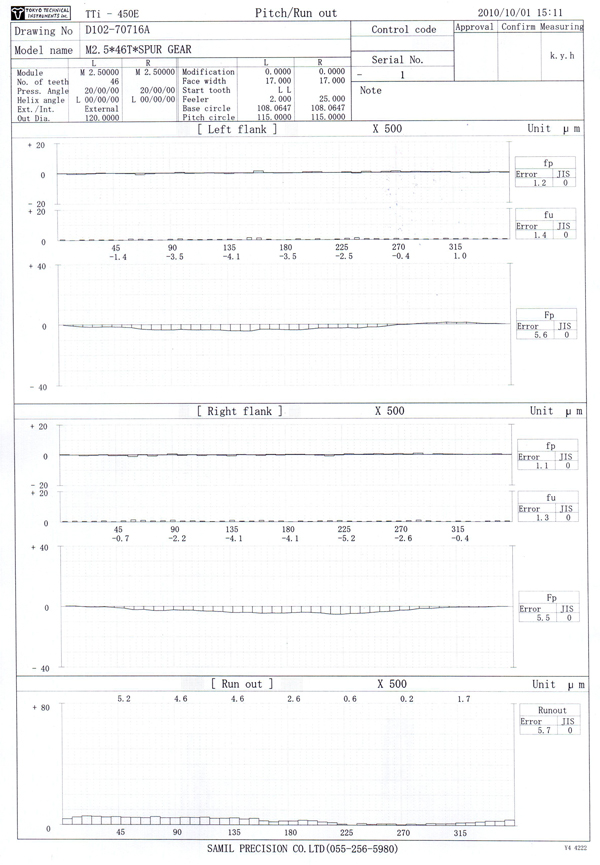

Report Sample / Profile. Lead. Pitch. Run
Specification
| Test item |
Spur/Helical gear internal gear profile,lead,pitch |
| Measuring system |
Electronic generating DDC loop sysem |
| Measurement module |
M0.5 ~ 12 |
| Base circle dia |
Ø450mm(Outer diameter Ø500mm) |
| Helix angle |
±65˚ (90˚) |
| Gear width |
600mm Max |
| Shaft length |
30 ~ 800mm |
| Max gear weight |
500kg Max |
| Drive system |
Constant-current drive |
| Machine Weight |
1,500kg |
| Power supply |
AC100V 50/60Hz 6A |
| Measurement accuracy |
0.1μm |
|
